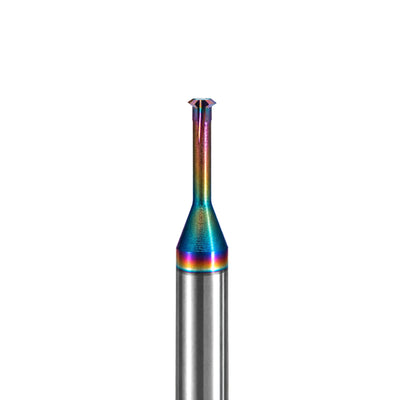

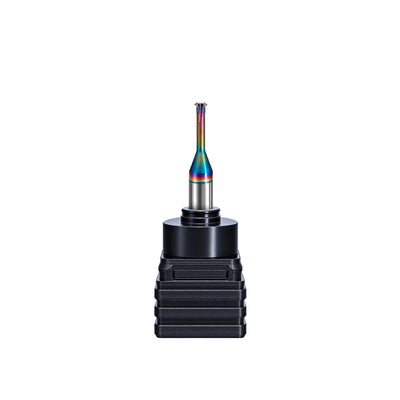

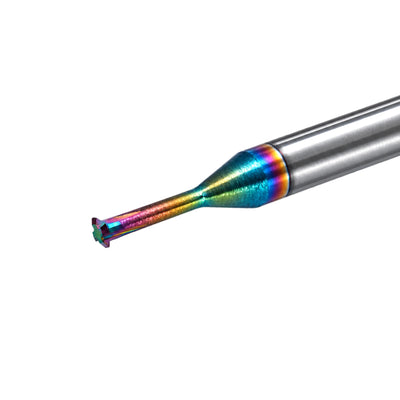

DLC Single-Flute Thread Mill – M4 × 0.7
*Estimated shipping time: 1 month after order placement.
- Cutting Diameter × Cutting Length:
- 3.15 × 10 mm
Description：
Designed for CNC thread milling, the DLC Single-Flute Thread Mill delivers precise thread machining for a variety of CNC applications.

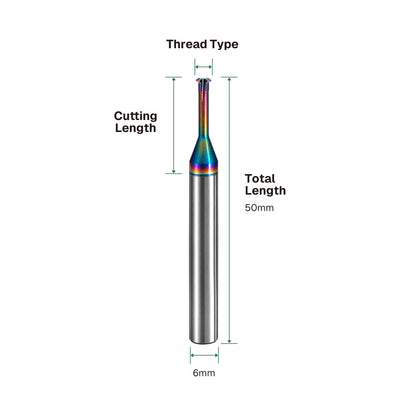

Specifications:
Thread Size: M4 × 0.7
Cutting Diameter: 3.15mm
Cutting Length: 10mm
Shank Diameter: 6mm
Total Length: 50mm
Material: Solid Carbide
Coating: DLC
Applications:
CNC Thread Milling, Thread Machining
Materials:
Aluminum, Brass, Copper, Plastics, Wood, Composites, etc.
Payment
Precision Contouring
The ball nose geometry enables smooth toolpaths across curved surfaces and complex 3D profiles, making it ideal for detailed contouring and finishing work.

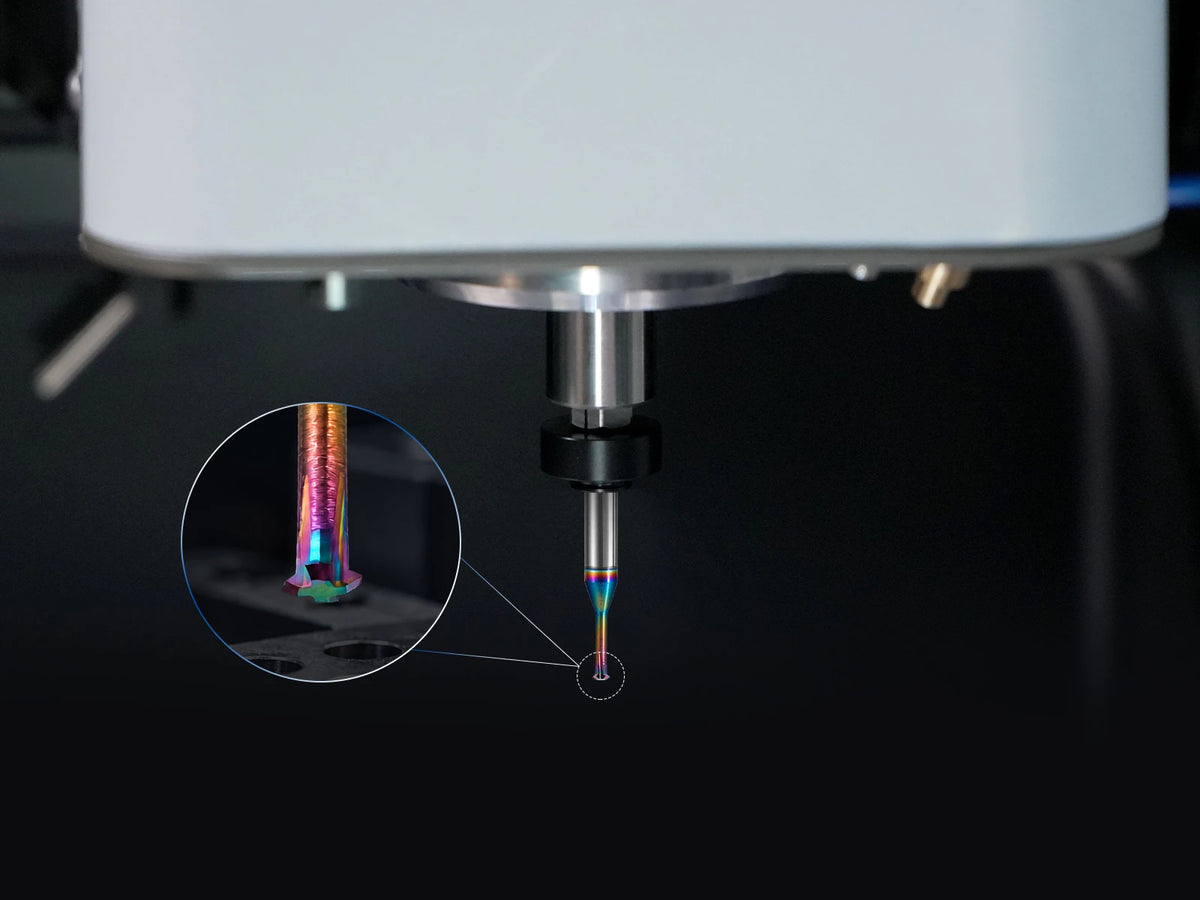

Engineered with DLC Coating
Lower Friction
Helps reduce material buildup
Reduced Chip Adhesion
Helps prevent chips from sticking to the cutting edge
- Extended Tool Life
Improves wear resistance
Tool Reference Parameters
RPM: SpindleSpeed(RPM)
Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min)
DOC: Depth of Cut(mm)
| Tool | Aluminum / Brass |
304 Stainless Steel / TC4 Titanium |
FR-4 | POM | Acrylic / ABS |
Birch / Walnut / Tooling Board |
|---|---|---|---|---|---|---|
| 6 × 12 mm Single-Flute Thread Mill |
RPM: 12000
Feed: 2000
PFeed: 1000
DOC: 0.3
|
RPM: 8000
Feed: 2000
PFeed: 1000
DOC: 0.1
|
RPM: 8000
Feed: 2000
PFeed: 1000
DOC: 0.1
|
RPM: 12000
Feed: 2000
PFeed: 1000
DOC: 1
|
RPM: 12000
Feed: 2000
PFeed: 1000
DOC: 1
|
RPM: 12000
Feed: 2500
PFeed: 1000
DOC: 1
|
The parameters above are recommended starting points. Actual settings may vary depending on material, workpiece setup, tool condition, and machining requirements.
