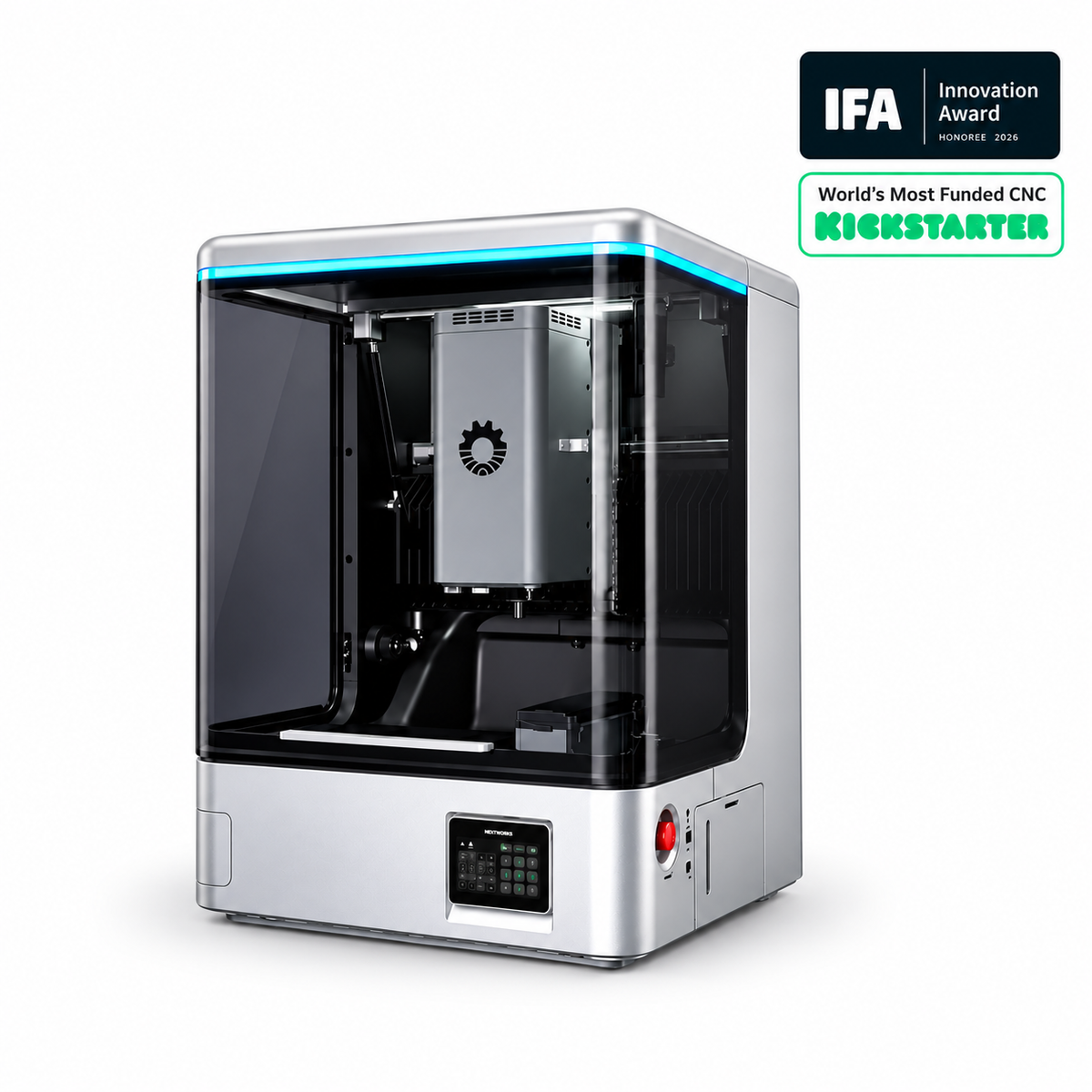

Nestworks Desktop CNC
*Estimated shipping time: 1 month after order placement.
- Desktop CNC:
- C500

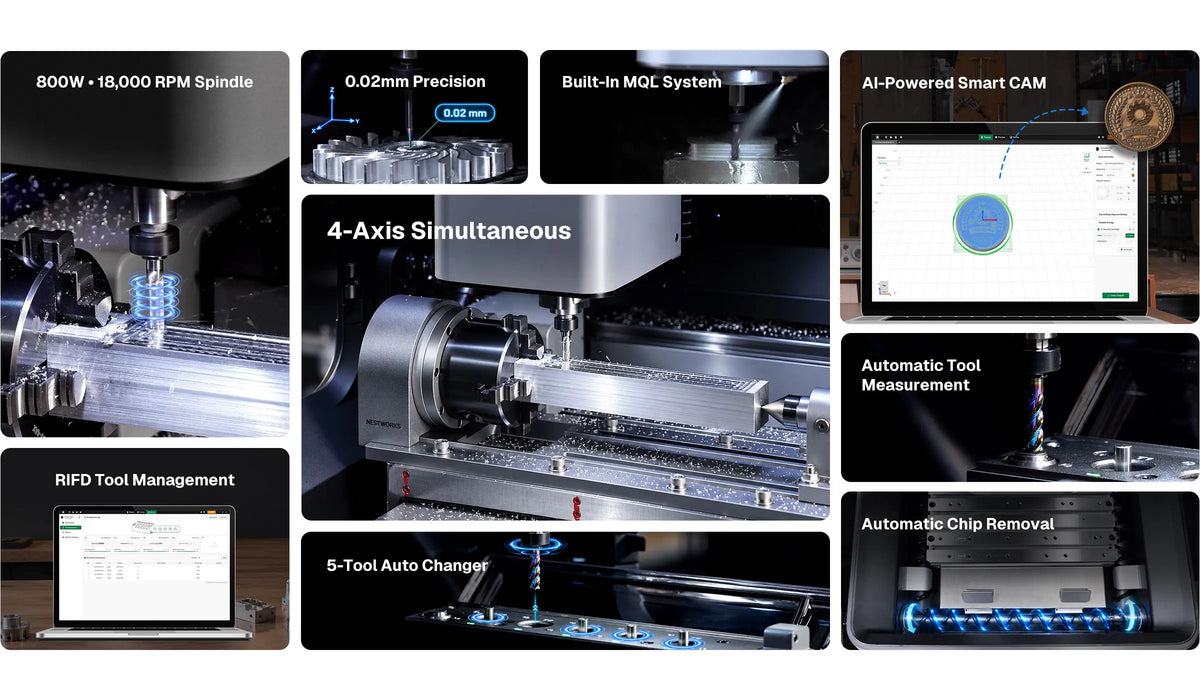

Product Features
• 800W / 18,000 RPM Spindle
• Smart CAM Software
• Automatic Tool Changer
• RFID Tool Management
• Automatic Chip Removal
• Built-in MQL & Air Cooling
• Rigid Cast Aluminum Frame

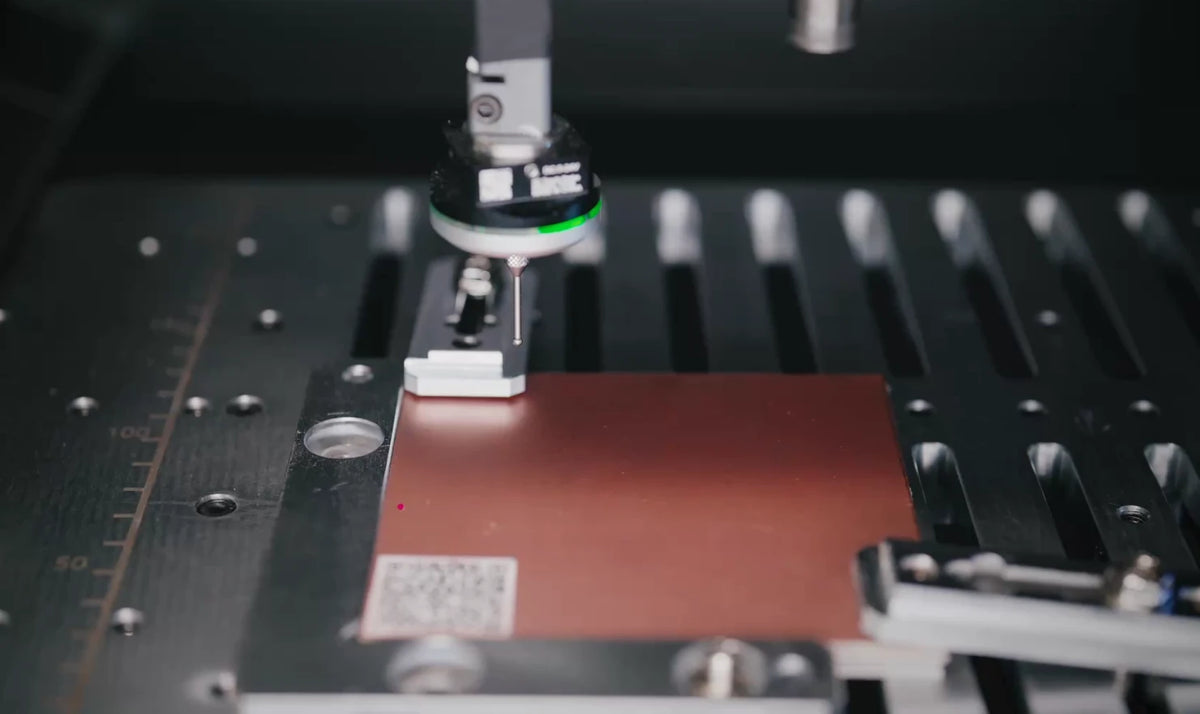

• 9-Point Auto-Leveling
• 4-Axis Machining Support
• Integrated Touchscreen Control
Built to Make More
Redefine What You Can Create
From intelligent software to 4-axis machining, the C500 brings every step together in one seamless CNC workflow.

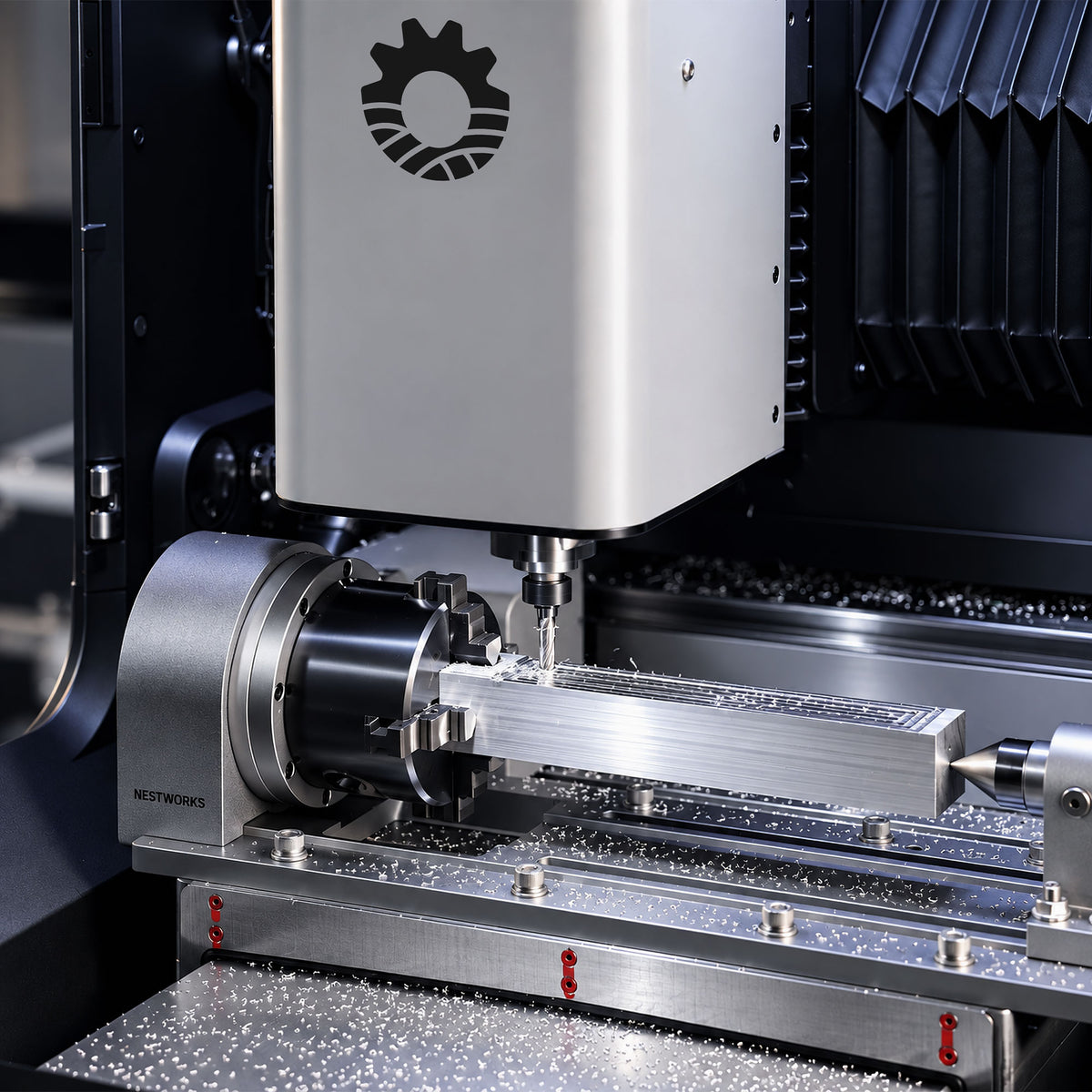

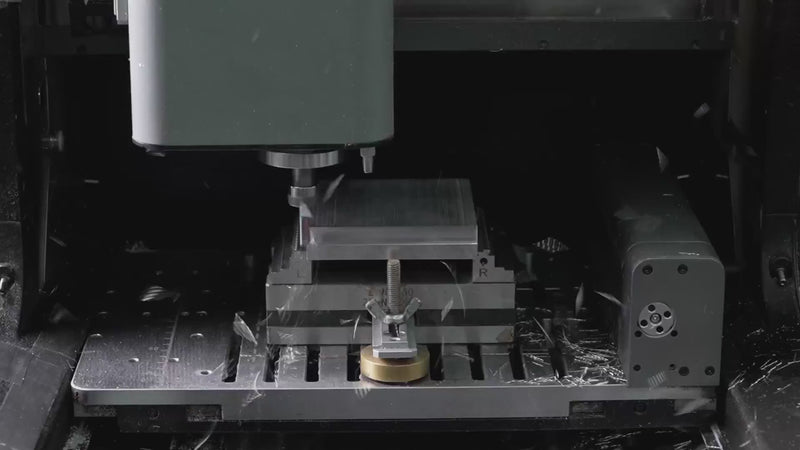

Cut, Carve, and Shape More
From metals and wood to plastics and PCB, C500 handles a wide range of materials.

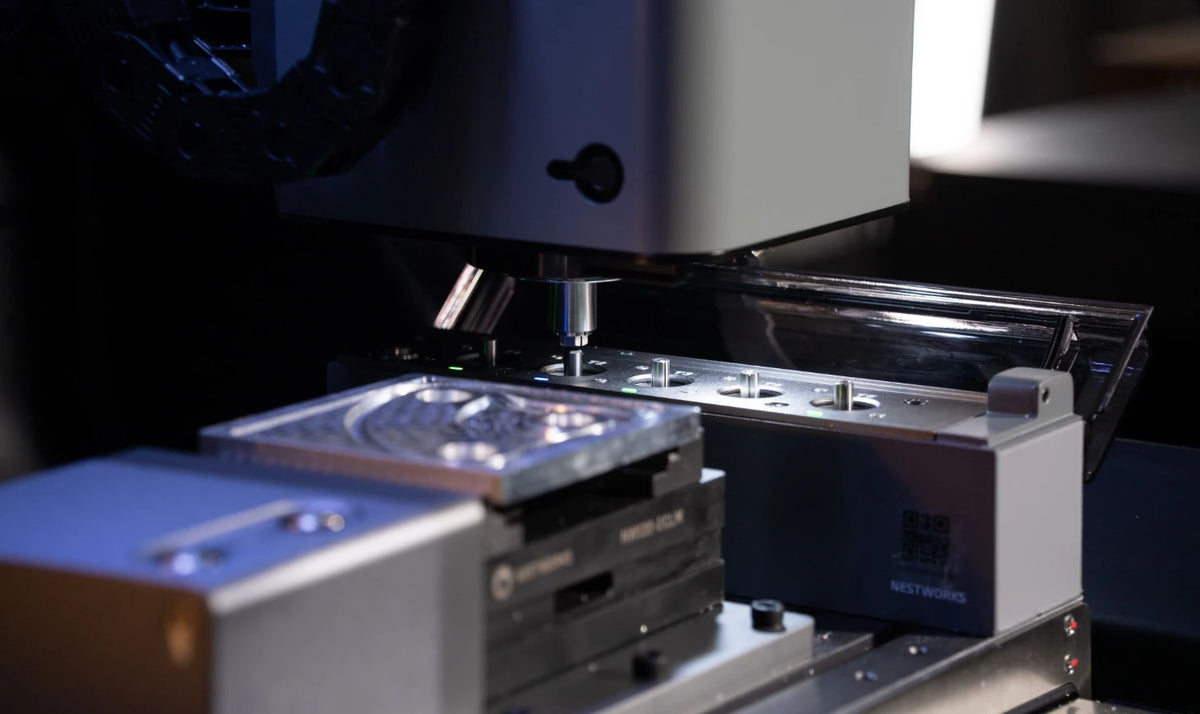

Five Tools, Zero Tool Chaos
Automatic Tool Changing
With 5-tool automatic tool changer (ATC), switch between tools
automatically for hands-free machining.

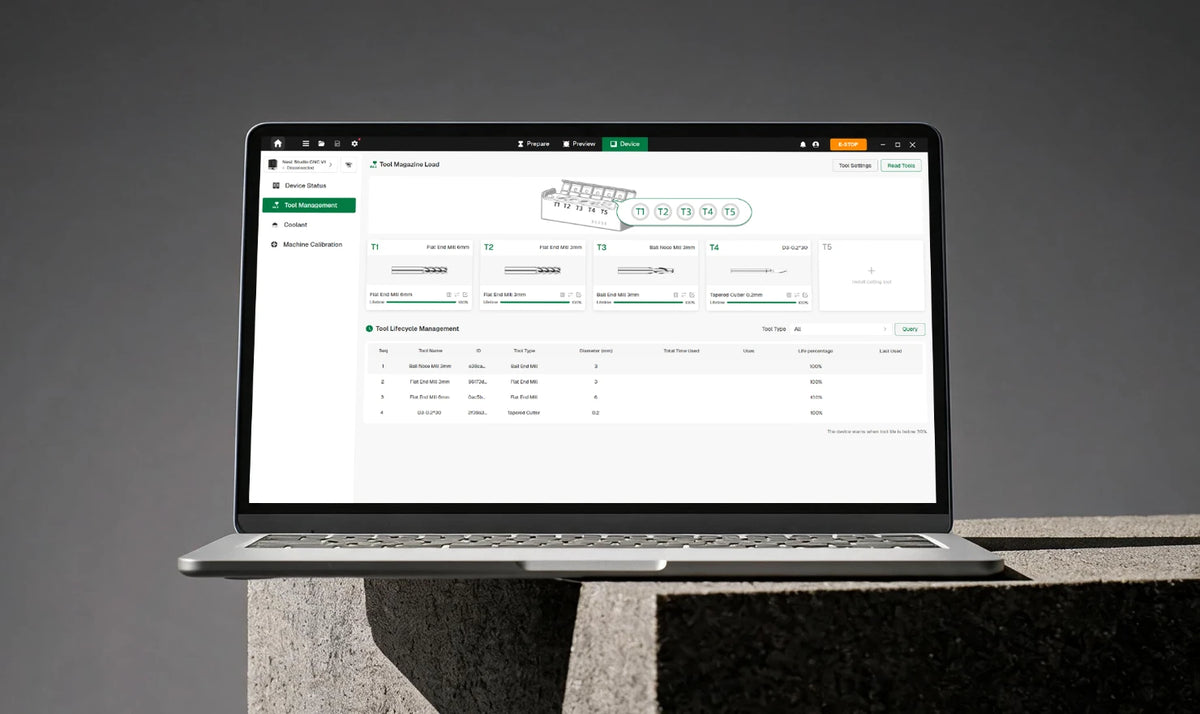

Smart RFID Tool Management
RFiD-enabled holders automatically identify tools, track tool life and usage, and sync tool data with CAM software for smart tool selection.

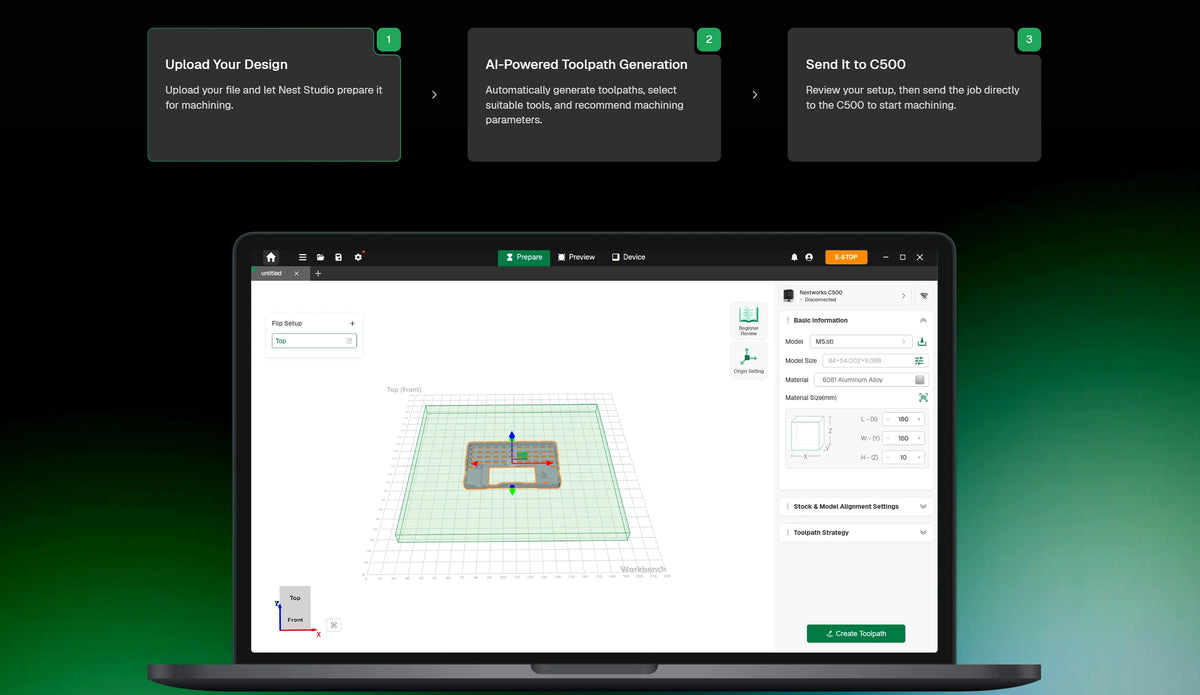

Just Three Steps from Prototype to Production

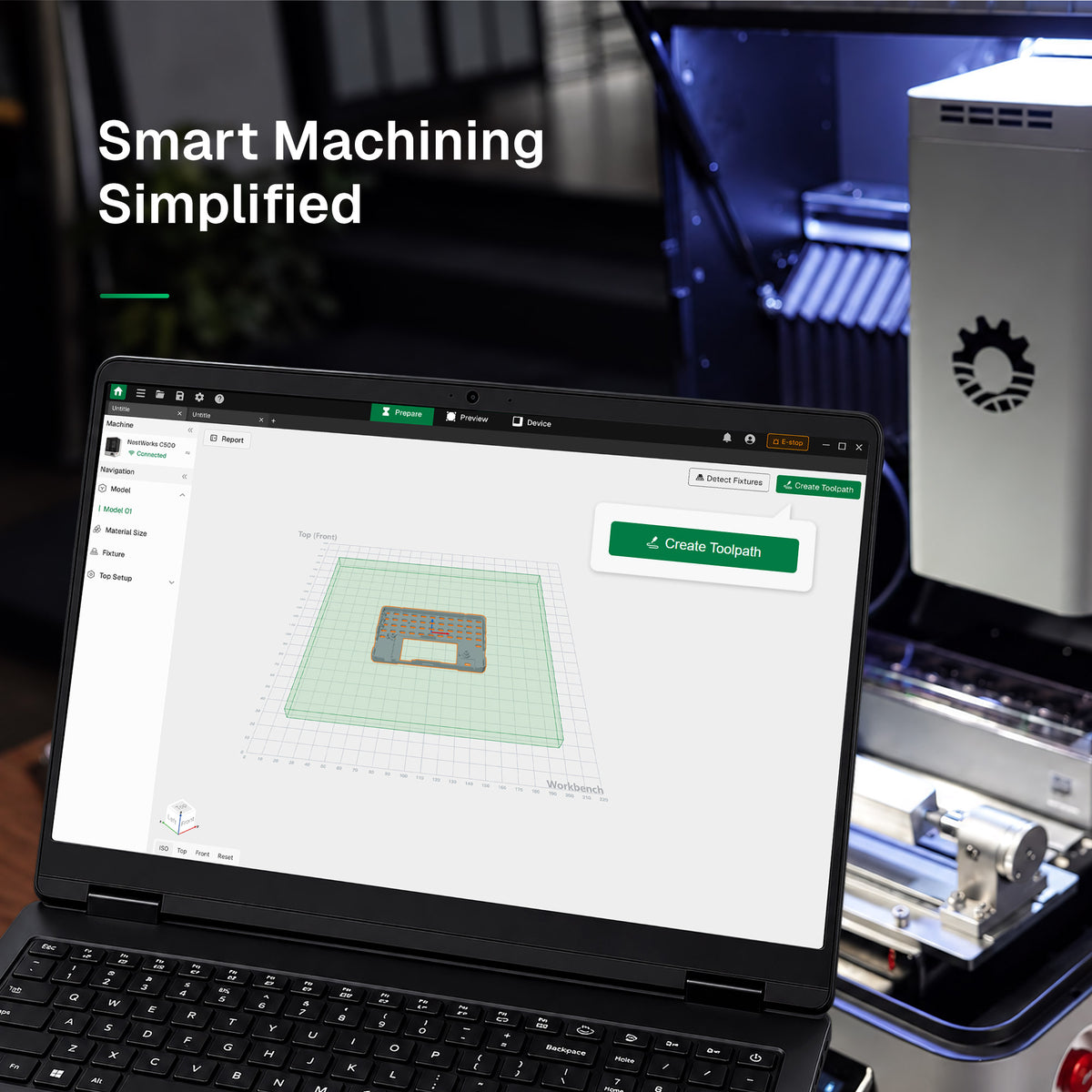

A streamlined CNC workflow powered by Nest Studio makes CNC machining easier.

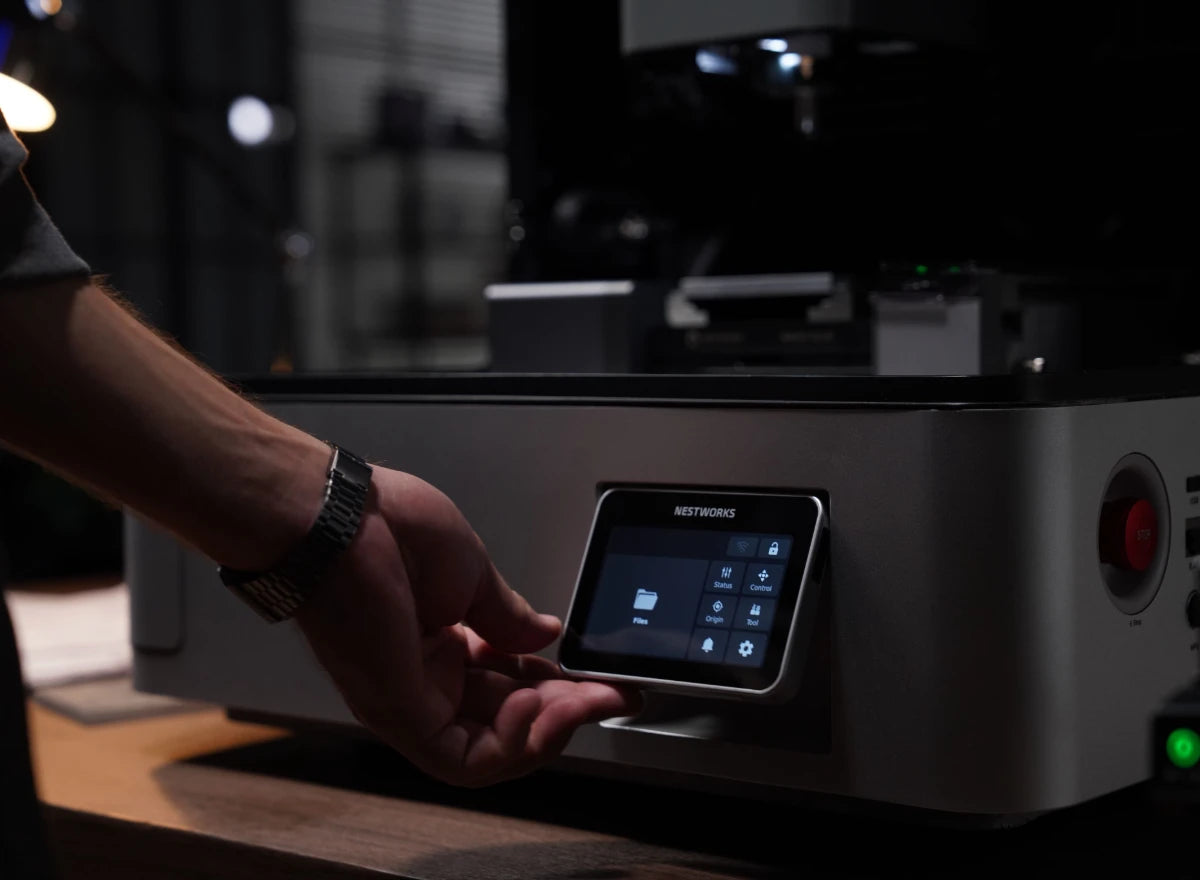

Control at Your Fingertips
Touchscreen Interface
Swipe and tap through essential machine functions with an intuitive built-in interface.
On-Machine Control
Access key controls directly from the C500 without relying on a connected computer.
Wi-Fi Connectivity
Nest Studio and C500 work together over Wi-Fi for seamless PC and on-machine control.

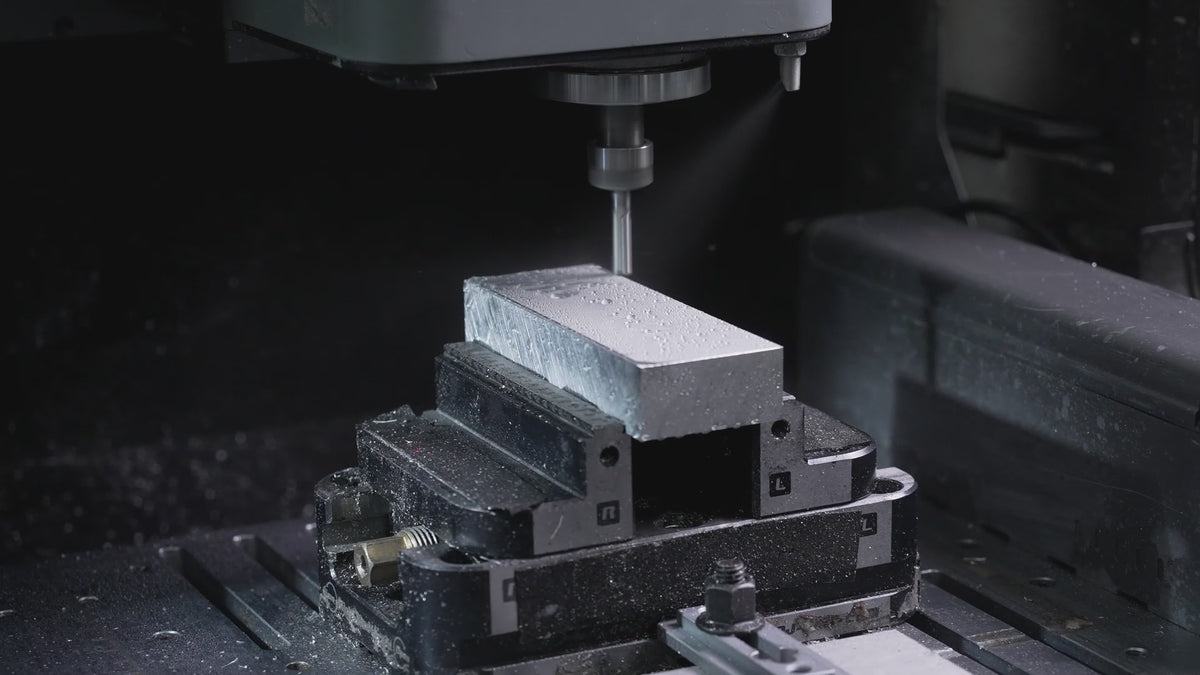

Bringing MQL to Desktop CNC
Coolant is atomized into a fine mist under high pressure and precisely delivered to the cutting area for effective cooling
and lubrication, while clearing chips from the worktable into the dual-sided augers.

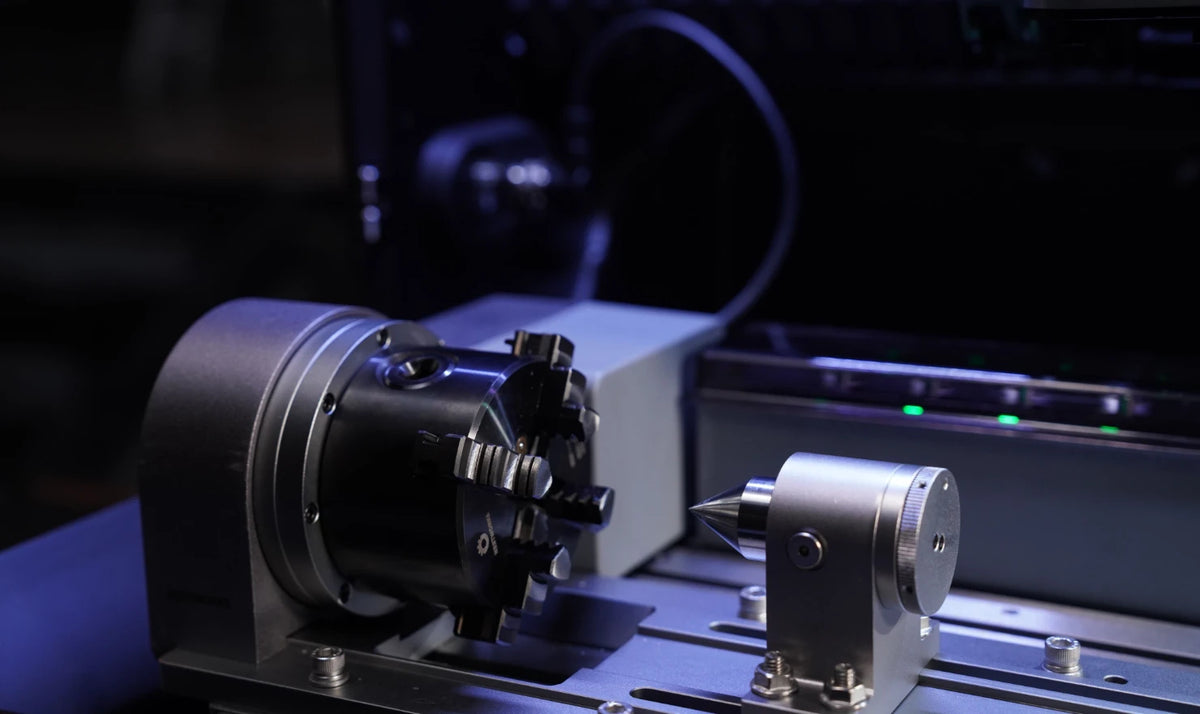

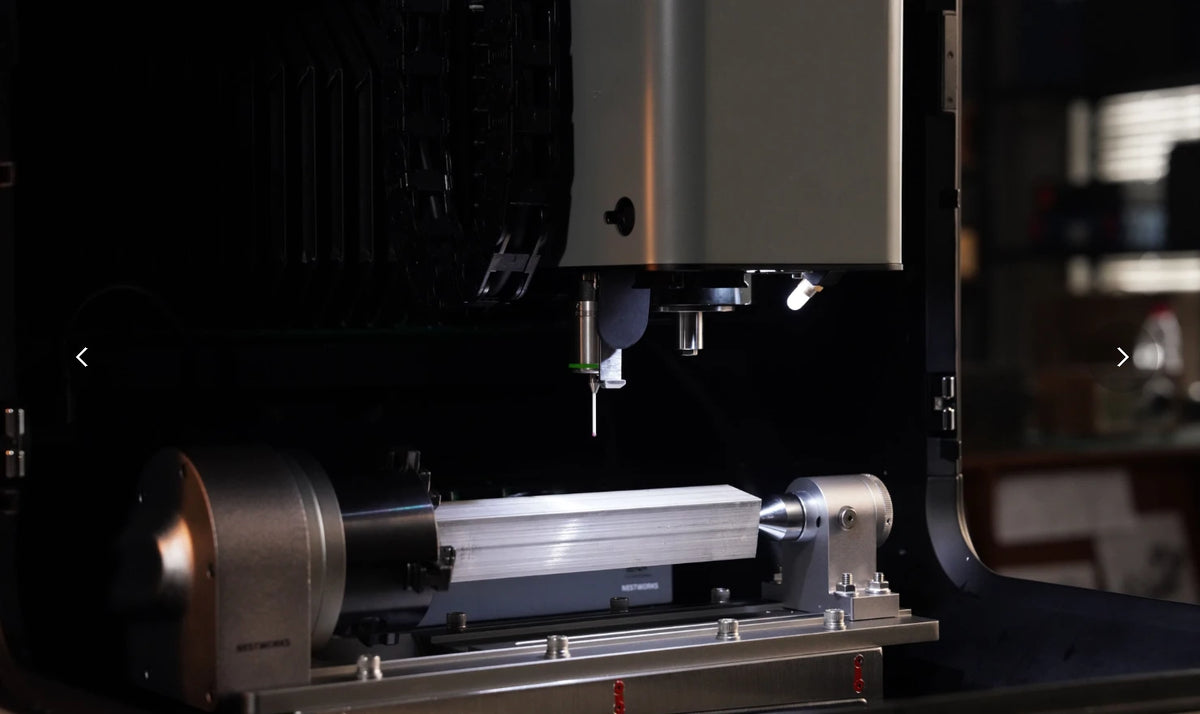

Unlock 4-Axis Machining
Add the 4th-axis module to switch between 3-axis and 4-axis machining.
Machine multi-sided and cylindrical parts with fewer setups and less
repositioning.

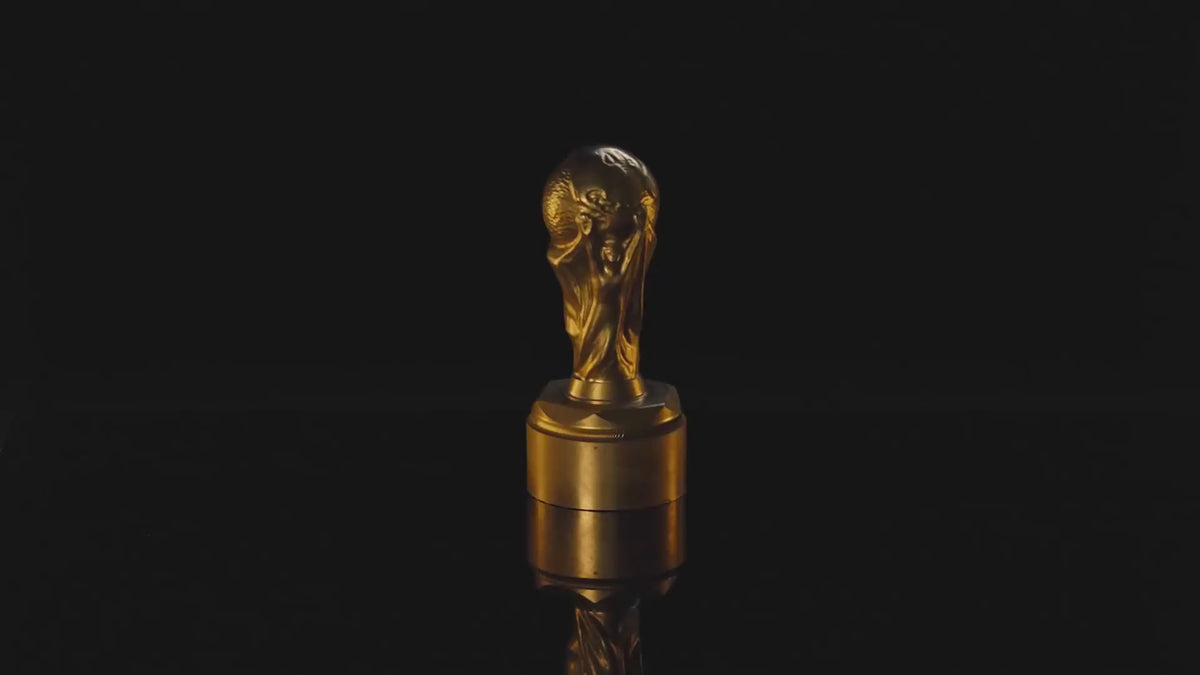

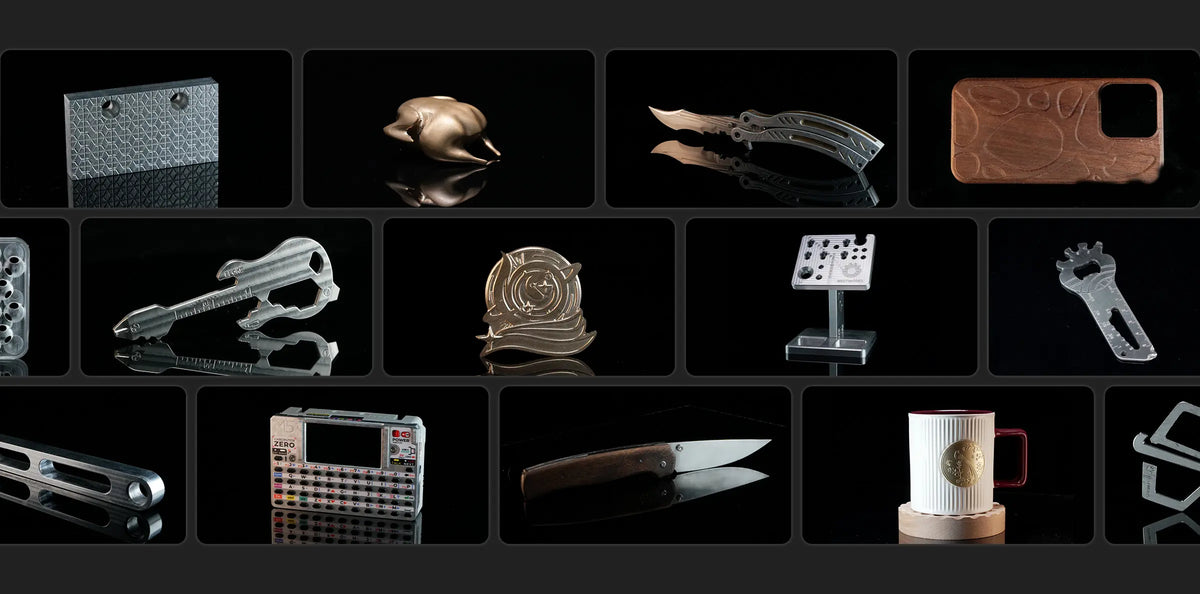

Ideas, Brought to Life

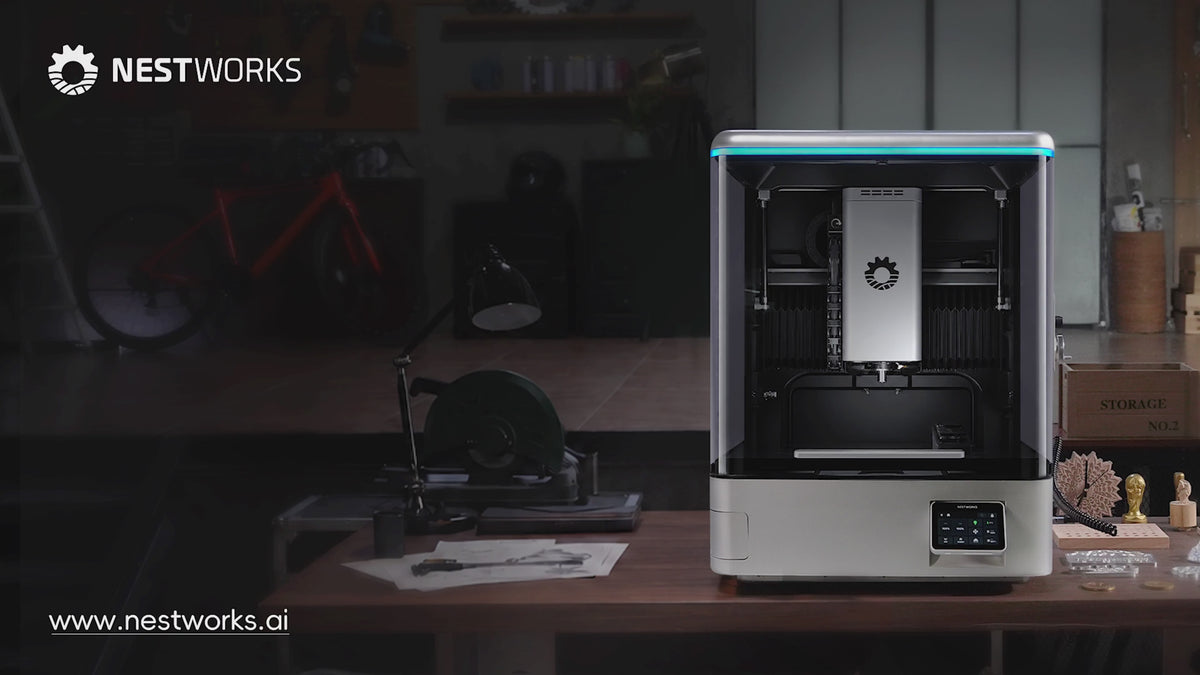

Unboxing Video

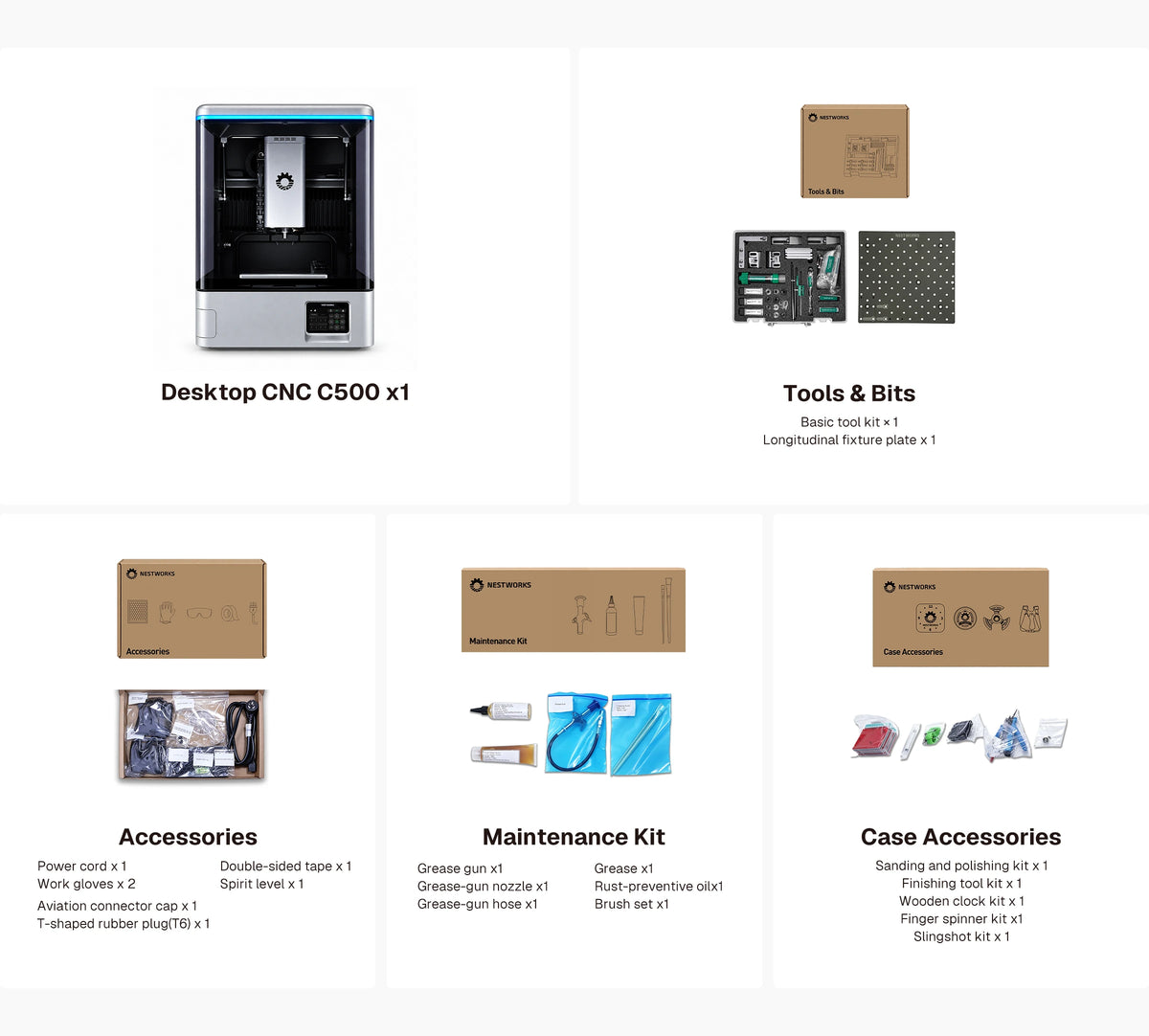

What's in the box
Specs
Basic Information
Spindle Module
Tool Magazine (ATC)
Motion System
Wood: hardwood, softwood, MDF, plywood, etc.
Plastics: foam, PVC, ABS, acrylic, PC, HDPE, etc.
Composites: carbon fiber, FR4, etc.
Metals: steel, aluminum, brass, copper, bronze, etc.
Laser engraving: wood, plastic, fabric, leather, cardboard, etc.
FAQ
What materials can the C500 CNC machine process?
C500 supports a wide range of materials, including aluminum, brass, copper, plastics, acrylic, wood, and other common CNC materials. It is designed for makers, engineers, and small businesses to create prototypes, custom parts, and functional components.
What software do I need to use with C500?
C500 works with NestStudio, our CNC workflow software for project preparation, toolpath generation, and machining management. It also supports standard G-code and is compatible with popular CAD/CAM software such as Fusion 360, Mastercam, SolidCAM, Aspire, and Carveco
What is the working area size with and without ATC?
Milling (with ATC): 157 × 210 mm or 240 × 95 mm (two layout options available) Milling (without ATC): 240 × 210 mm
What are the maximum clamping diameter and working length of the 4th axis?
The 4th axis supports a maximum clamping diameter of 100mm, with a corresponding X-axis working length of 175mm (the tool magazine is positioned along the Y-axis).
What is the power and speed of the C500 spindle?
C500 supports max spindle power 800W and max spindle speed 18,000 RPM.
What is the machining accuracy of C500?
Positioning accuracy: ± 0.02 mm Repeatability positioning accuracy: ± 0.008 mm Automatic tool setting accuracy: ± 0.005 mm
What are the supported tool shank specifications for the C500?
C500 supports tool shanks ranging from 1/8" (3.175 mm) to 1/4" (6.35 mm)
