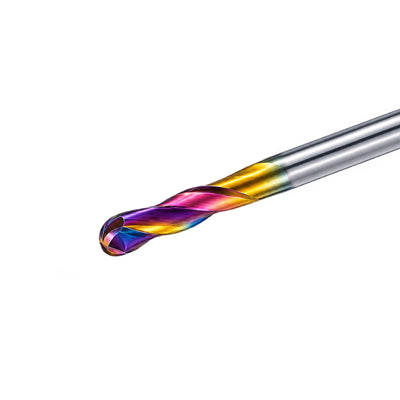

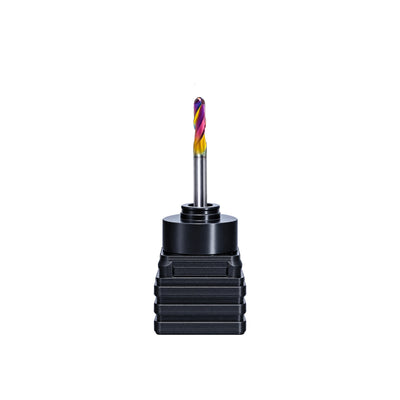

DLC 2-Flute Ball Nose End Mill – 1/8" Shank
*Estimated shipping time: 1 month after order placement.
- Cutting Diameter × Cutting Length:
- 1/8" × 3/8"
Description：
Designed for 3D contouring and curved-surface machining, the DLC 2-Flute Ball Nose End Mill delivers smooth, precise cuts for detailed CNC work.

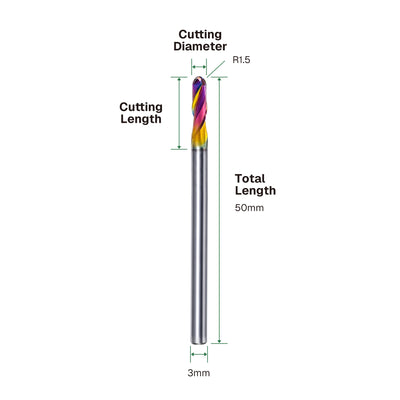

Specifications:
Shank Diameter: 1/8" (3.175mm)
Ball Radius: R0.059" (1.5mm)
Cutting Edge Length (LOC): 0.394" (10mm)
Overall Length (OAL): 1.969" (50mm)
Flutes: 2
Material: Solid Carbide
Coating: DLC
Applications:
3D Contouring, Curved-Surface Milling, Surface Finishing, Relief Milling
Materials:
Aluminum, Brass, Copper, Plastics, Wood, Composites, etc.
Payment
Precision Contouring
The ball nose geometry enables smooth toolpaths across curved surfaces and complex 3D profiles, making it ideal for detailed contouring and finishing work.

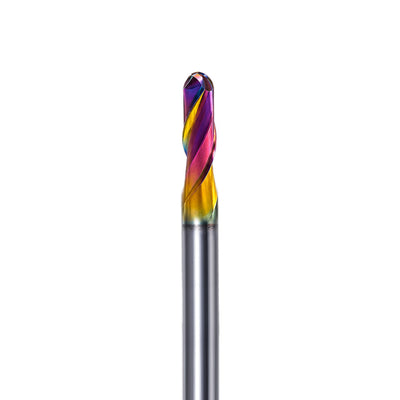

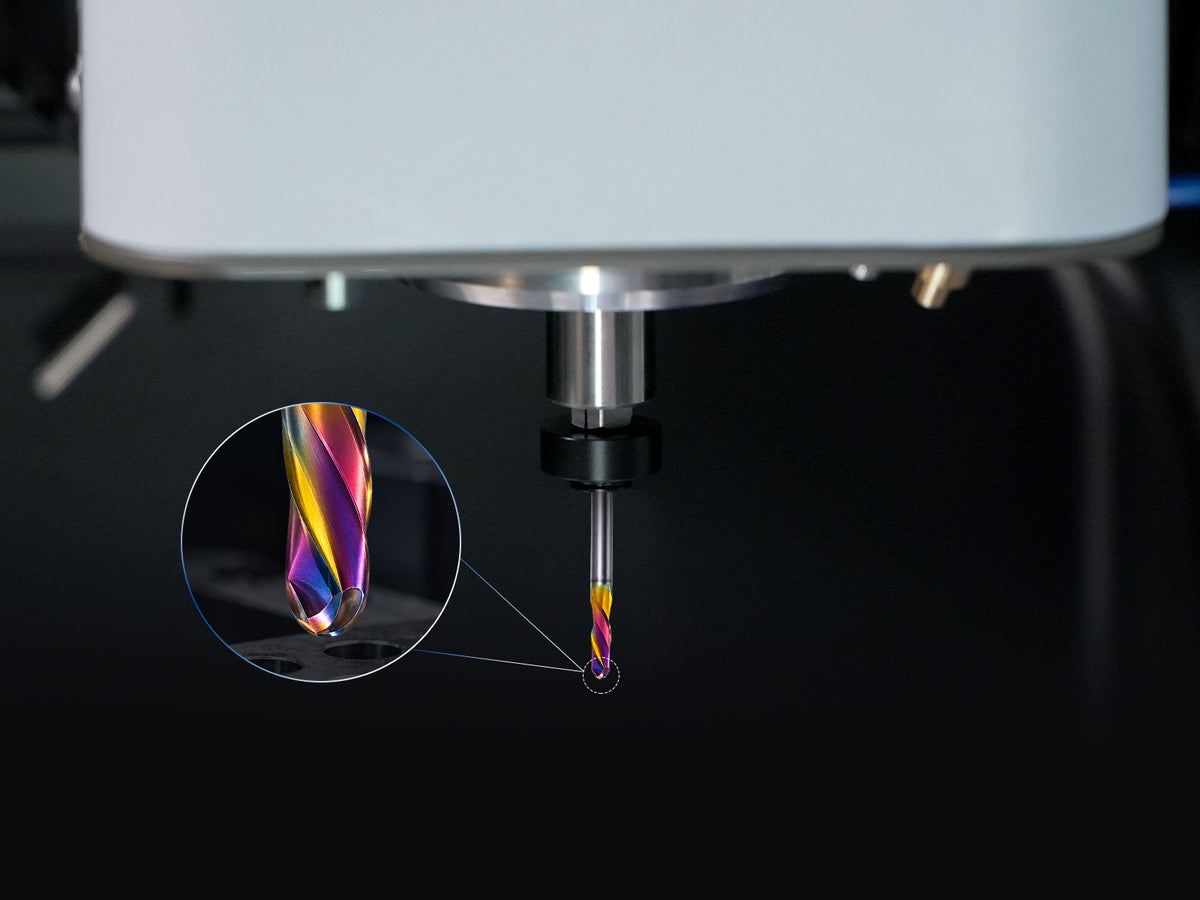

Engineered with DLC Coating
Lower Friction
Helps reduce material buildup
Reduced Chip Adhesion
Helps prevent chips from sticking to the cutting edge
- Extended Tool Life
Improves wear resistance
Tool Reference Parameters
RPM: Spindle Speed (RPM)
Feed: Feed Rate (mm/min)
PFeed: Plunge Feed Rate (mm/min)
DOC: Depth of Cut (mm)
| Tool | Aluminum | Brass | 304 Stainless Steel |
TC4 Titanium | FR-4 | POM |
|---|---|---|---|---|---|---|
| 3 × 10 mm Ball Nose |
RPM: 15000
Feed: 1500
PFeed: 1000
DOC: Variable
|
RPM: 15000
Feed: 1500
PFeed: 1000
DOC: Variable
|
RPM: 10000
Feed: 1000
PFeed: 1000
DOC: Variable
|
RPM: 10000
Feed: 1000
PFeed: 1000
DOC: Variable
|
RPM: 10000
Feed: 1000
PFeed: 1000
DOC: Variable
|
RPM: 15000
Feed: 1500
PFeed: 1000
DOC: Variable
|
DOC: Depth of cut varies depending on stock allowance and machining conditions.
The parameters above are recommended starting points. Actual settings may vary depending on material, workpiece setup, tool condition, and machining requirements.
